Pro Series with Standard Control Valves
Pro Series with Standard Control Valves
Click to enlarge

Pro Series with Standard Control Valves

SUPERIOR DESIGN
Enables the use of manual non-drip tips

DURABLE
No exposed pointers to break or turn backwards

MODULAR ASSEMBLY
Swivel, control valve, meter and tip assembly are separate units which simplifies repair

SELF-POWERED
Eliminates the headaches associated with dead batteries

SHOCK-RESISTANT
Rugged shock-resistant design stands up to the harshest environments. Meter bodies are equipped with a soft rubber shock-guard for added protection

FILTER
All Pro Series mechanical control valves have built-in filters for added protection

FLUID COMPATIBILITY
Automatic Transmission Fluid, Gear Oil, Hydraulic Oil, Motor Oil, Synthetic Oil

Items in Pro Series with Standard Control Valves
Item
METERED UNITS TOTALIZER UNITS TIP ASSEMBLY TIP ASSEMBLY DESCRIPTION TIP DIAMETER WORKING FLOW RATE

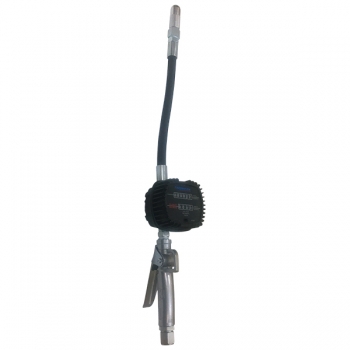

Mechanical Metered Control Handle with Flexible Extension & Automatic Non-Drip Tip
Item TIM-651-FA
METERED UNITS QUARTS TOTALIZER UNITS QUARTS TIP ASSEMBLY TIM-747 TIP ASSEMBLY DESCRIPTION FLEX AUTOMATIC TIP DIAMETER 1/2" WORKING FLOW RATE 2.5 GPM

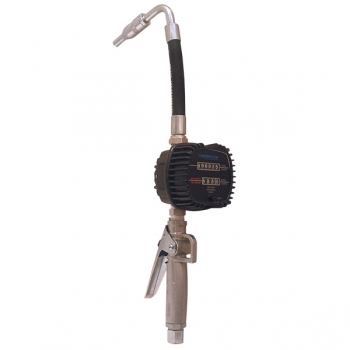

Mechanical Metered Control Handle for Oil or ATF with Flexible Extension & Manual Non-Drip Tip
Item TIM-651-FM
METERED UNITS QUARTS TOTALIZER UNITS QUARTS TIP ASSEMBLY TIM-743 TIP ASSEMBLY DESCRIPTION FLEX MANUAL TIP DIAMETER 5/8" WORKING FLOW RATE 2.5 GPM

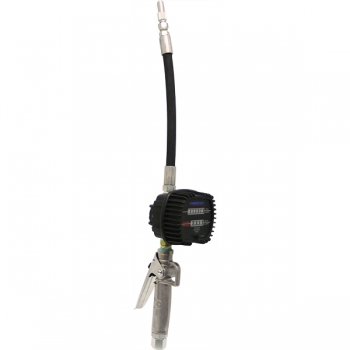

Mechanical Metered Control Handle for Oil or ATF with Flexible Extension & Manual Non-Drip Tip
Item TIM-651-FMHF
METERED UNITS QUARTS TOTALIZER UNITS QUARTS TIP ASSEMBLY TIM-743-1 TIP ASSEMBLY DESCRIPTION FLEX MANUAL HI-FLOW TIP DIAMETER 15/16" WORKING FLOW RATE 4 GPM

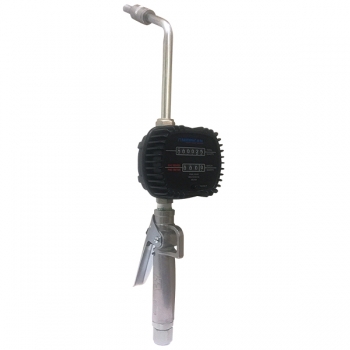

Mechanical Metered Control Handle with Rigid Extension & Automatic Non-Drip Tip
Item TIM-651-RA
METERED UNITS QUARTS TOTALIZER UNITS QUARTS TIP ASSEMBLY TIM-746 TIP ASSEMBLY DESCRIPTION RIGID AUTOMATIC TIP DIAMETER 1/2" WORKING FLOW RATE 2.5 GPM

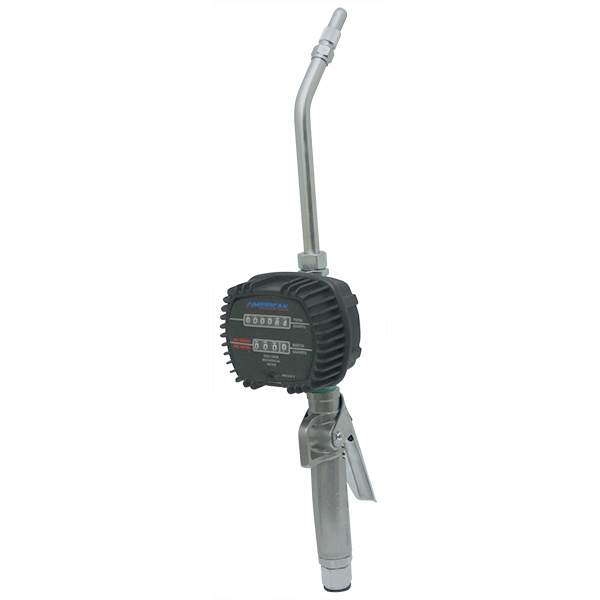

Mechanical Metered Control Handle with Rigid Extension & Manual High-Flow Non-Drip Tip
Item TIM-651-RM
METERED UNITS QUARTS TOTALIZER UNITS QUARTS TIP ASSEMBLY TIM-753 TIP ASSEMBLY DESCRIPTION RIGID MANUAL TIP DIAMETER 1/2" WORKING FLOW RATE 2.5 GPM
Mechanical Metered Control Handle for Oil or ATF with Rigid Extension & Non-Drip Tip
Item TIM-651-RMHF
METERED UNITS QUARTS TOTALIZER UNITS QUARTS TIP ASSEMBLY TIM-752 TIP ASSEMBLY DESCRIPTION RIGID MANUAL HI-FLOW TIP DIAMETER 15/16" WORKING FLOW RATE 4 GPM
