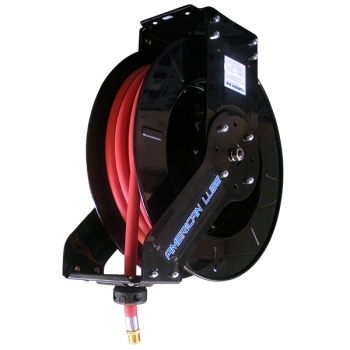

Advantage Plus Double Arm Air/Water Hose Reels

DUAL ARM DESIGN
Adds rigidity to the reel making it well suited for heavy use, high ceilings or lube truck applications

LATCH SPRING
Heavy-duty latch spring is designed for years of trouble-free service, and can be replaced without removing or disassembling the reel

ENCLOSED SPRING
Cartridge style spring motor is packed with grease and fully enclosed for extra safety

MOUNTING FLEXIBILITY
Multi-position guide arm is easily adjusted for ceiling, floor, wall, tank, or truck mounting

STRENGTH BEADS
Reels are constructed with strength beads for added rigidity

ROLLED EDGES
Hubs are constructed of heavy gauge steel with rolled edges for extra strength and maximum protection

RIGID CONSTRUCTION
Base plate and support post are built from heavy 1/4" plate steel to reduce flexing and fatigue

SELF-LUBRICATING
1" triple supported steel axle with 1" self-lubricating precision bearings

HI-FLOW SWIVEL
Load-free high-flow swivel allows maximum product delivery, and can be replaced without removing or disassembling the reel

DURABLE FINISH
All Advantage Plus Series reels are powder-coated black for increased durability

Items in Advantage Plus Double Arm Air/Water Hose Reels

Item

FOR USE ON HOSE SIZE MAXIMUM PSI DELIVERY HOSE HOSE STOP INLET WEIGHT

3/8" x 50' Advantage2 Plus Double-Arm Air/Water/WWS Reel with Rubber Hose

Item TIM-3916-50A

FOR USE ON AIR, WATER, WWS HOSE SIZE 3/8"(M) X 50' MAXIMUM PSI 300 PSI DELIVERY HOSE TIM-4216-50 HOSE STOP TIM-131-3 INLET 3/8"(F) WEIGHT 49 LBS

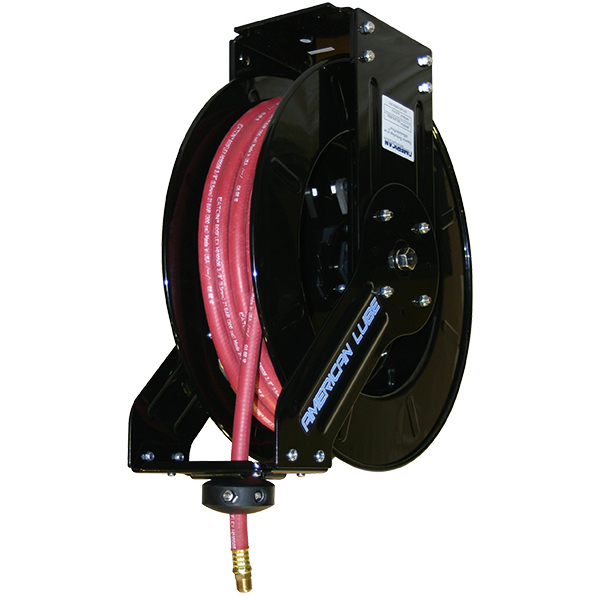

3/8" x 65' Advantage2 Plus Double-Arm Air/Water/WWS Reel with Rubber Hose

Item TIM-3916-65A

FOR USE ON AIR, WATER, WWS HOSE SIZE 3/8"(M) X 65' MAXIMUM PSI 300 PSI DELIVERY HOSE TIM-4216-65 HOSE STOP TIM-131-3 INLET 3/8"(F) WEIGHT 64 LBS

1/2" x 50' Advantage2 Plus Double-Arm Air/Water/WWS Reel with Rubber Hose

Item TIM-3918-50A

FOR USE ON AIR, WATER, WWS HOSE SIZE 1/2"(M) X 50' MAXIMUM PSI 300 PSI DELIVERY HOSE TIM-4208-50 HOSE STOP TIM-131-4 INLET 1/2"(F) WEIGHT 60 LBS

1/2" x 65' Advantage2 Plus Double-Arm Air/Water/WWS Reel with Rubber Hose

Item TIM-3918-65A

FOR USE ON AIR, WATER, WWS HOSE SIZE 1/2"(M) X 65' MAXIMUM PSI 300 PSI DELIVERY HOSE TIM-4208-65 HOSE STOP TIM-131-4 INLET 1/2"(F) WEIGHT 64 LBS
